Nhà sản xuất thiết bị đỗ xe và cửa quay dành cho người đi bộ được liệt kê trong hơn 15 năm!
Mã chứng khoán: 832966
| Place of Origin: | China |
|---|---|
| Hàng hiệu: | DOOR or OEM |
| Chứng nhận: | CE / IS09001 |
| Model Number: | DR.TD6629A-Black |
| Minimum Order Quantity: | 1 lane |
| Giá bán: | US $3000-US $3700 |
| Packaging Details: | Plywood box ，L1600×W140×H1000mm |
| Delivery Time: | 2-8 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 2500 sets per month |
| Vật liệu: | Thép không gỉ SUS304 + Hợp kim nhôm | Môi trường làm việc: | -25 ℃-+70 |
|---|---|---|---|
| Vượt qua tốc độ: | 35-40 Cá nhân/phút | Động cơ: | Động cơ servo |
| Photocell: | 12 cặp | Chiều rộng đoạn văn: | Tiêu chuẩn 600mm, tối đa 900mm |
| Cánh tay xoay có sẵn: | Acrylic | Xếp hạng IP: | IP42 |
| Chu kỳ trung bình giữa thất bại: | 20 triệu lần | Điện áp: | AC110V/AC220V ± 10% 50-60Hz |
| Năng lượng hoạt động: | Lõi đơn 100W, lõi kép 200W | Phương pháp của vị trí: | Động cơ + ly hợp + bộ mã hóa |
| Làm nổi bật: | high speed swing turnstile gate,RFID QR code access control turnstile,speed gate turnstile with warranty |
||
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

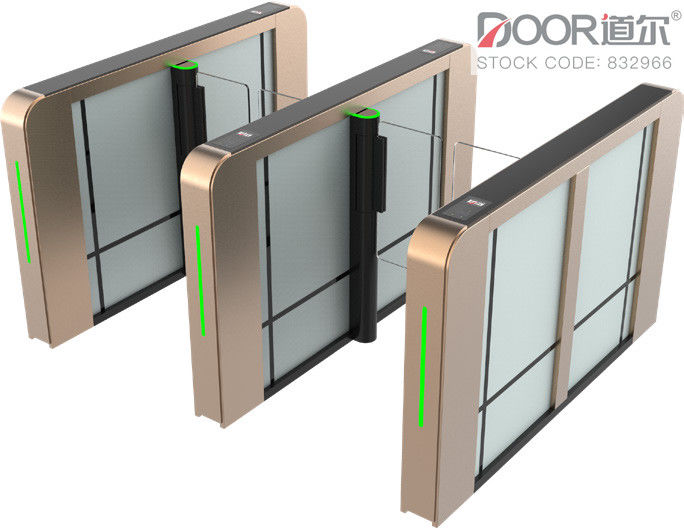

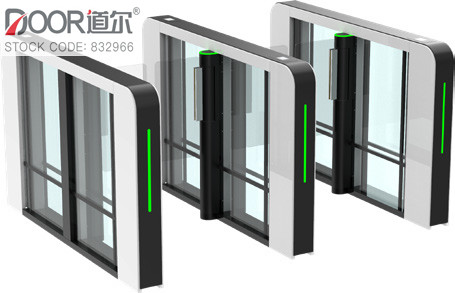

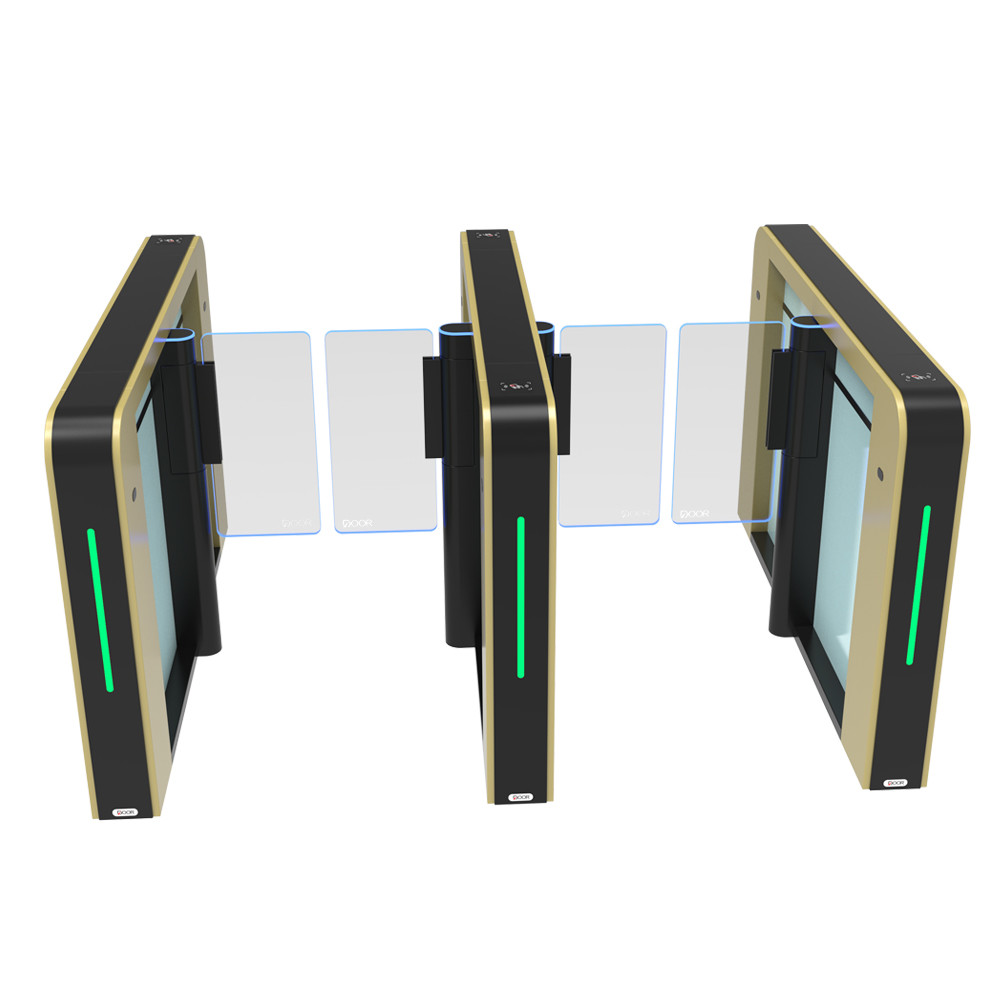

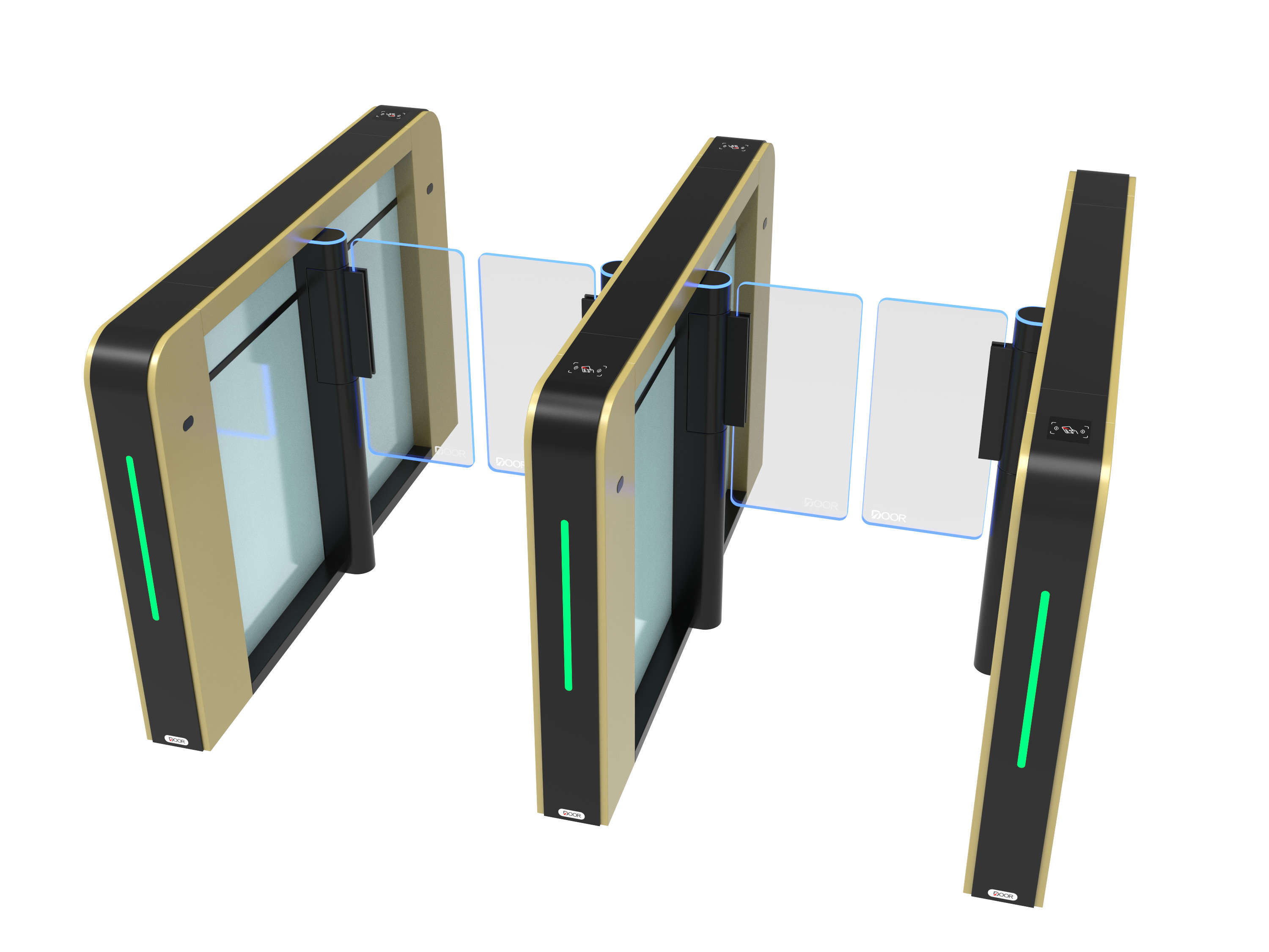

High-End Screwless Fast Speed Turnstile Gate With 0.3S Servo Motor
Discriptions of pedestrian speed gate turnstile
The speed gate top cover is made of aluminum alloy, the body is made of stainless steel and brushed SUS304 thickness 2.0mm, which is matched with elegant champagne gold
The turnstile top cover aluminum alloy surface is anodized after sandblasting. It is bright,delicate and smooth
Traditional mortise and tenon process design, the appearance of the whole machine has no screws and no keyholes.
The new design is Industry new trend that come with hidden infrared design, the infrared are hidden between double tempered glass
The gap between the top cover and side cover of the whole machine and the body without filler is less than 0.2mm, showing the craftsman spirit
The servo motor running come with and self-developed FOC control technology, which can effectively accurately control and locate the moving position and force of the door. Realize the stability and mute control of the door during operation.
Open door time as fast as 0.3 seconds.
Functions
Anti-trailing function:
Multiple sets of infrared beam monitoring can pass one person and one card to personnel,to prevent trailing and alarm prompt.
Anti-reverse:
Precise actuarial calculation,infrared beam monitoring,reverse passage,automatic blockade of channels,voice alarm prompt.
Anti-clip and anti-collision monitoring:
Triple safety protection mechanism to ensure the safe passage of person
A.Infrared anti-clip and anti-collision
B.Passing process logic anti-pinch and anti-collision
C.Current detection anti-clamp and anti-collision
More optional for Speed Gate DRTD6629
Slim speed gate optional

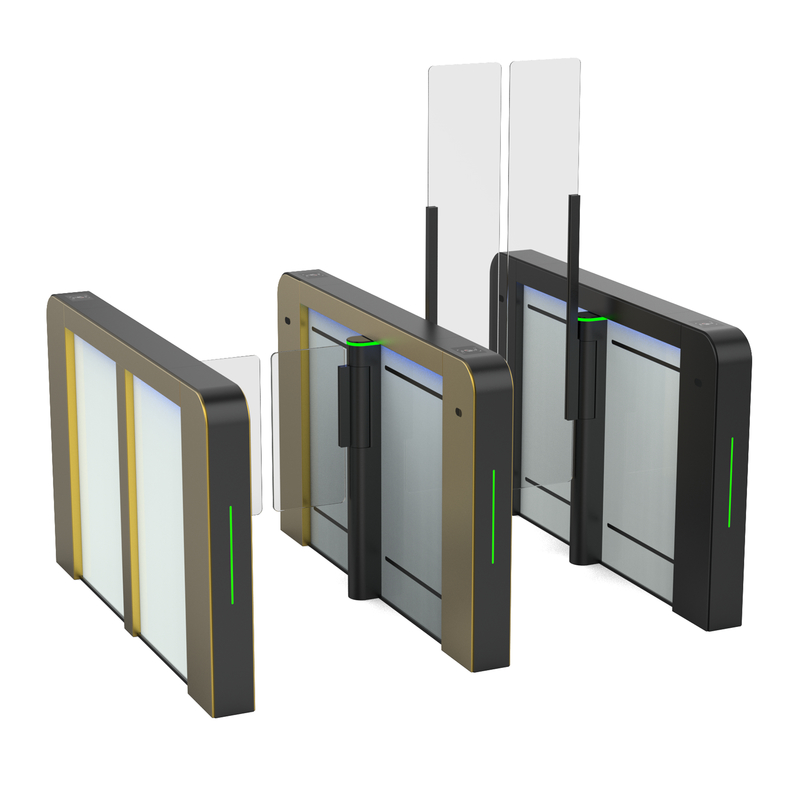

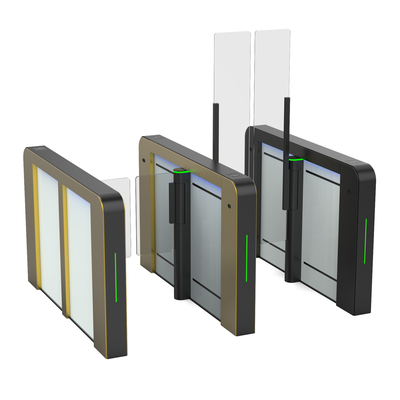

High Arm Speed Gate
Screwless Speed Gate Dimension
Applications for Speed Gate Turnstile
This new released speed gate can use at office and administrative buildings,Ministries and public buildings.Banks and financial institutions,Industrial installations, Residential areas,Schools, colleges and universities
Packing details of Speed Gate
Size: 169*34*118mm
GW: Side cabinet: 125kg
Middle cabinet: 135kg
