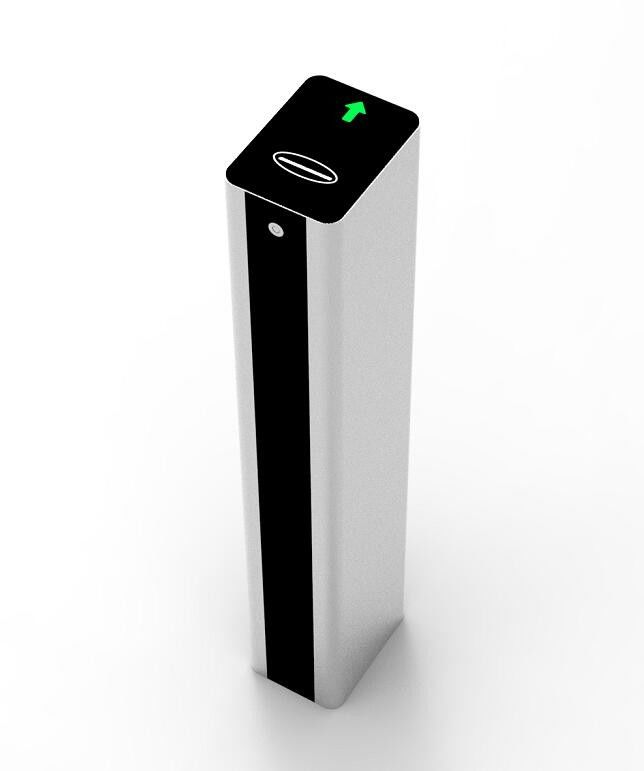

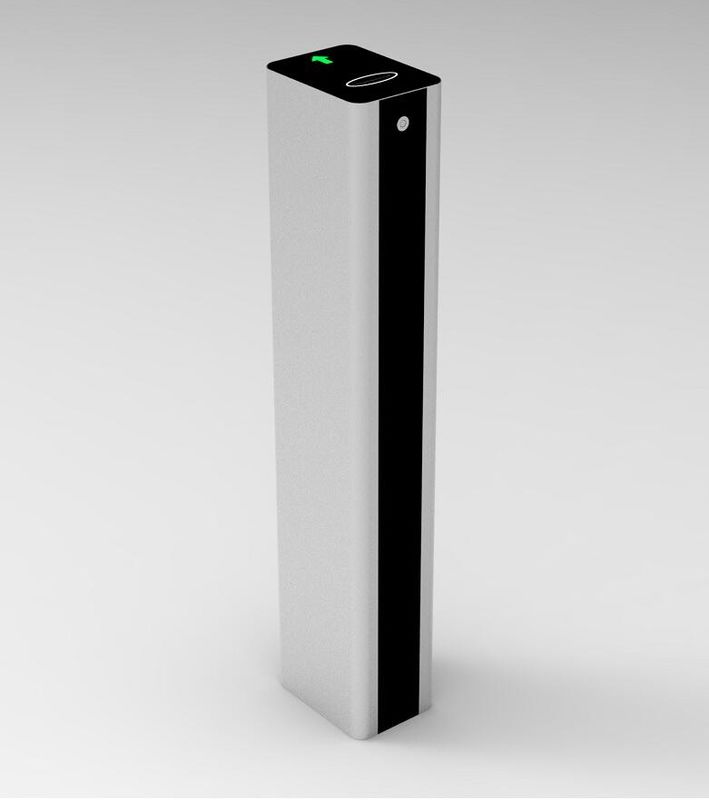

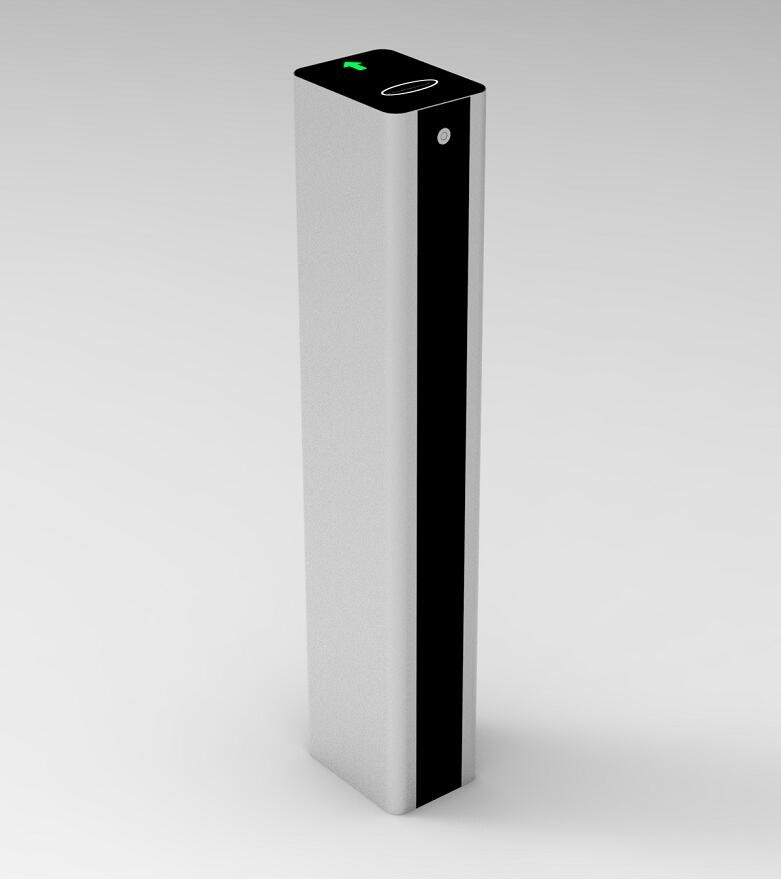

Card Collector Pillar

Card Collector Pillar

Our card collector pilar offers a robust design that integrates seamlessly with access control systems. it complements modemarchitecture while providing reliable performance and security in both commercial and residential spaces.

Features:

Upward movement capability for easy accessSide access for collector box openingCan function as a stand alone unit or integrateseamlessly with turnstile gates
Energy-efficient with lower power consumptionOperates quietly with a smooth system performanceEquipped with an LED indicator to show passing statusSuitable for both indoor and outdoor environmentsSimple installation and maintenance

Configuration:

1. Card drops to card collector
2. Card reader reads card and authenticate
3.Controller sends relay trigger to indicate
A Out 1.Access Granted .Cards to accpet collector binB.Out 2- Access Denied - Cards to reject collector bin

Function:

Timeout Card Return Function: Allows selection to return the card after timeout or not return the card after timeout.
Configurable timeout duration (3s, 10s, 30s).
Anti-wrong Card Collection Function: Prevents wrong card collection and following cards. lf a second card isinserted while the first card is being collected, the system stops the collection action until the second card isremoved.
Host Computer Enable Signal: Provides signals for host computer enable and gate opening.Error Status Alarm: Sound and light alarm for error status (e.g., card blocked, card returned, card full).Multiple Control interfaces: Supports both RS232 and l/0 level control interfacesAutomatic Card Return Settings: Configurable settings for card return time and card acceptance time via DIPswitches.
Power-on Self-test Function: Automatically performs a self-test when powered on to ensure proper functionalityCard Block Detection Function: Detects card blockages and provides an alarm (beeps three times) and LEDindication.
.Card Receiving and Returning Function : Supports card receiving and returning with configurable time settingsMaintenance Alert Function: indicates when maintenance is required (e.g., ater 10,000 operations or monthly).Safety Protection Function: Prevents damage to the machine by stopping operation when external objects aredetected.
Communication interface Function: Provides RS232 and l/0 level control interfaces for seamless integration withother systems.
Confiqurable DlP Switch Function: Allows users to confiqure settings such as timeout duration, card return time.
and card acceptance time via DlP switches.
Error Recovery Function: Automatically recovers from errors such as card blockages or communicaion failures.User-friendly LED and Buzzer indication: Provides clear visual (LED) and audible (buzzer) indications for differentworking statuses (e.g., power-on, idle, card receiving, card returned, card blocked, card full).

Parameters:
