| Place of Origin: | China |
|---|---|
| Hàng hiệu: | DOOR or OEM |
| Chứng nhận: | CE / IS09001 |
| Model Number: | DR.TD.6634 |
| Minimum Order Quantity: | 1 lane |
| Giá bán: | negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 units/month |
| Material: | SUS304 brushed stainless steel | Suitable For: | Access Control, Entrance And Exit Control |
|---|---|---|---|
| Turnstile Material: | SUS304 Stainless | Top Cover Material: | SUS304 Stainless |
| Communication Interface: | RS485 | Power Input: | AC100-240V; 50/60HZ |
| Swing arm available: | 10mm Thickness acrylic | Driving Motor: | Servo Motor |
| Opening Signal Input:: | Dry contact signal (pulse greater than 200MS) | Working environment: | indoor |
| Support System: | Face Recognition,ic/id Card,fingerprint | Motor: | Servo motor |
| IP Rating: | IP42 | Voltage: | AC110V/AC220V±10% 50-60Hz |
| Operating Power: | Single Core 100w, dual core 200w | Method of position: | Motor + clutch + encoder |
| Mtbf: | 10 Million Times | Size: | 22600*200*1490mm |
| Relative humidity: | 0%～90%(no condensation) | Gate opening/ closing time: | 0.2S |
| Infrared configuration: | 32 infrared detection points | Process standard: | Laser cutting, grooving and bending, high-end atmosphere, baking varnish |
| Service life: | 30 million times | ||
| Làm nổi bật: | SUS304 stainless steel airport turnstile,airport turnstile with servo motor,stainless steel servo turnstile |
||

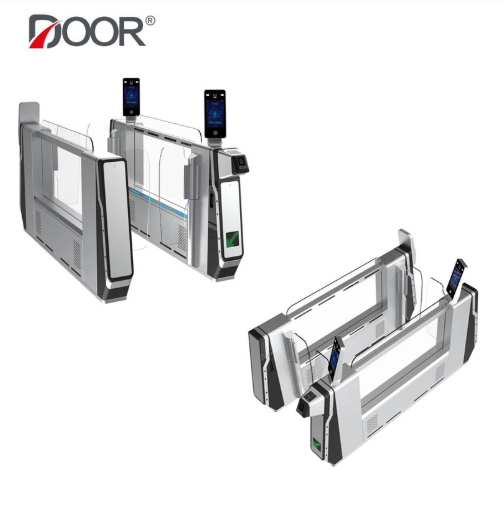

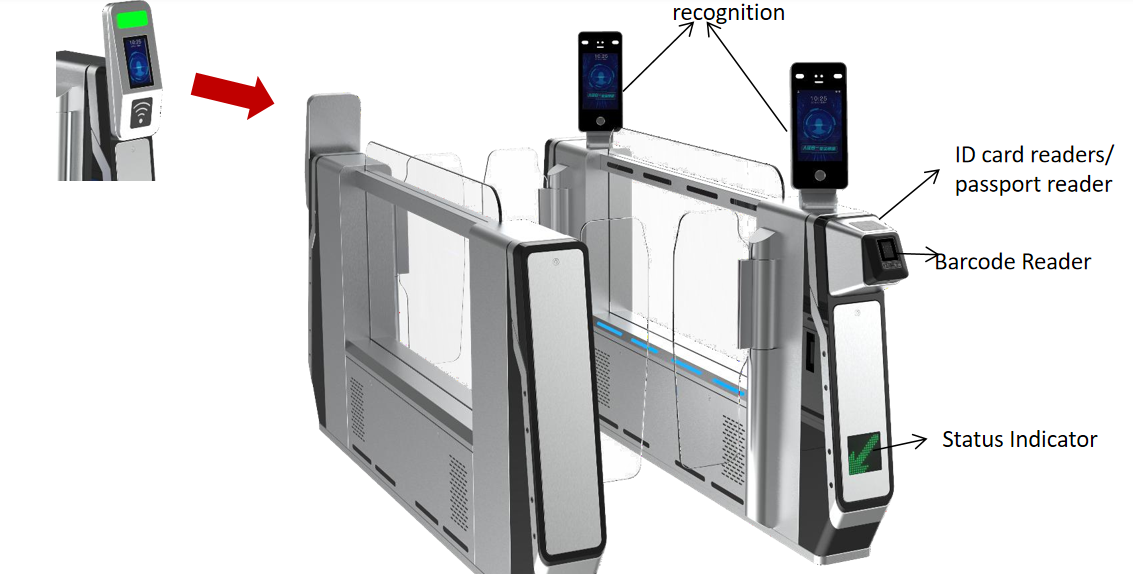

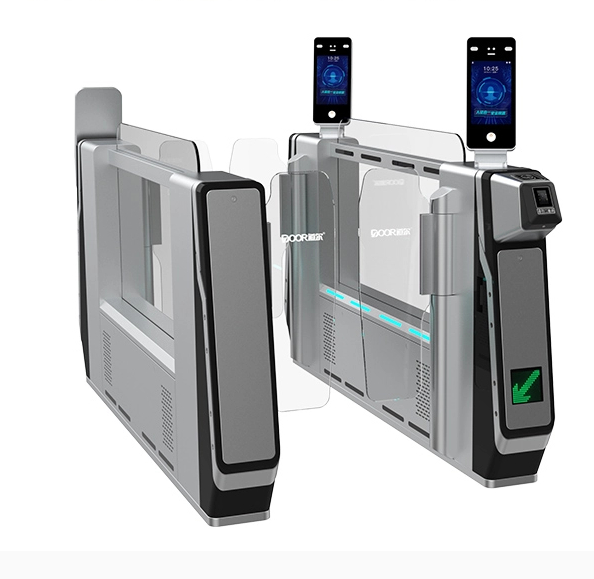

The SecuraFlow Border Gates are constructed from durable SUS304 brushed stainless steel, providing reliable access control for high-traffic areas. These eGates offer efficient passenger clearance with an average processing time of 10-12 seconds per person, featuring advanced liveness detection and tailgating prevention technology.
| Attribute | Value |
|---|---|
| Material | SUS304 brushed stainless steel |
| Suitable For | Access Control, Entrance And Exit Control |
| Communication Interface | RS485 |
| Power Input | AC100-240V; 50/60HZ |
| Driving Motor | Servo Motor |
| Working Environment | Indoor |
| IP Rating | IP42 |
| Operating Power | Single Core 100w, dual core 200w |
| Service Life | 30 million cycles |
| Dimensions | 22600*200*1490mm |
Ideal for office buildings, government facilities, banks, airports, hotels, campuses, and high-end residential areas.
